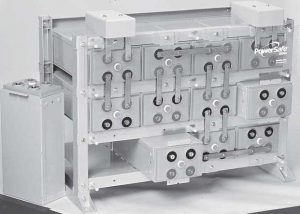

EnerSys PowerSafe DDm DDm85-15

  • Weight (per cell, unpacked): 111 lbs
  • Nominal row height / stack depth: 8.63 x 23.50
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 595
  • Internal Resistance (mΩ): 441
  • Nominal Voltage: 4
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm85-15 Category:
Description
Additional information

The second battery in the mid-range PowerSafe DDm series from EnerSys, the DDm85-15 has a maximum capacity of 595 Ah per cell. This reliable valve-regulated lead-acid battery cell system comes with a 100% “out of box” initial battery capacity guarantee. Initial set-up is easy and flexible; the modular steel can design can be adjusted according to special requirements.

The PowerSafe DDm85-15 has a flame-retardant cover and a relief valve complete with an integral flame arrestor. It is also optimized for maximum conductivity with a large lead casting terminal and threaded copper insert. A thick positive plate minimizes corrosion and prolongs battery life.
